Construction site enclosure refers to the measures taken to isolate the construction site from the external environment, making the construction site a relatively enclosed space.

施工圍擋主要的用處是將道路施工現場和外部道路的環境所隔離開來，讓施工現場變成一個相對而言較為封閉的環境，這樣作業起來也不會被外界干擾，同時施工也保證了外界居民的。圍擋是施工中使用多的一種圍擋材料之一，也是我們?cè)谏钪谐Ｒ?jiàn)的道路施工防護措施。

The main purpose of the construction fence is to separate the environment of the Roadworks site from that of the external roads, making the construction site a relatively closed environment, so that the operation will not be disturbed by the outside world, and the construction will also ensure the safety of the external residents. Enclosure is one of the enclosure materials widely used in construction, and it is also a common safety protection measure for Roadworks in our life.

一 彩鋼施工圍擋

One color steel construction enclosure

彩鋼圍擋現貨規格：小板（11張）高度：1.8m2.0m2.5m/寬27.5cm寬0.21厚/大板（3張）92cm寬*0.2厚/高度：1.8m2m/橫梁：25*30*0.5厚/立柱：80*80*0.6/警示板：20cm寬*0.2厚 其他規格均可定做

Color steel fence stock specification: Small board (11 pieces) Height: 1.8m2.0m2.5m/W27.5cmW0.21 thick/Large board (3 pieces) 92cm W * 0.2 thick/Height: 1.8m2m/Cross beam: 25 * 30 * 0.5 thick/Column: 80 * 80 * 0.6/Warning board: 20cm W * 0.2 thick Other specifications can be customized

彩鋼圍擋的特點：

The characteristics of the colored steel fence:

節約：房屋設計合理，可以循環使用，損耗率低不產生建筑垃圾，不污染環境。

Environmental protection and conservation: the house is reasonably designed and can be recycled. The low loss rate does not produce Construction waste and does not pollute the environment.

裝拆便捷：標準化構件安裝方便，制作安裝工期短，特別適用于應急工程或其它臨時性工程。

Convenient installation and disassembly: Standardized components are easy to install, with a short production and installation period, making them particularly suitable for emergency or other temporary projects.

造型美觀：房屋整體造型美觀，室內外均為彩色裝飾鋼板，色澤鮮明質感柔和板面平整，設計與色彩搭配協調，具有良好的裝飾效果。

Beautiful appearance: The overall appearance of the house is beautiful, with colorful decorative steel plates used both indoors and outdoors. The color is bright, the texture is soft, and the board surface is flat. The design and color matching are coordinated, with good decorative effects.

性價比高：房屋材料上乘，合理，一次性投資，可重復使用，用作建房材料，可大量減少建筑物的結構及基礎的工程量，施工周期短，工程總造價及綜合使用成本低，具有很高的性能比。

High cost-effectiveness: The building materials are high-quality, reasonably priced, disposable, reusable, and can be used as building materials to significantly reduce the amount of structural and foundation work for buildings. The construction cycle is short, and the total cost and comprehensive use cost of the project are low, resulting in a high cost-effectiveness ratio.

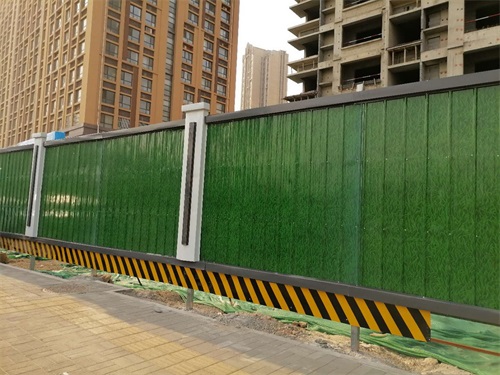

二 PVC施工圍擋

Two PVC construction enclosures

圍擋現貨規格：高1.8m2m2.5m柱中3米大板壁厚0.8mm立柱：120*120*1.3厚，內襯：100*100*1.0厚橫梁：50*80*1.3厚，內襯：40*40*0.5厚/注：三橫梁-中橫梁：40*40*110，內襯：30*30*0.5厚 顏色：淺藍+白/深藍/草綠/果綠+白 其他規格均可定做

Spot size of fence: 1.8m2m2.5m high, 3-meter thick in the middle of the column, 0.8mm thick in the wall, 120 * 120 * 1.3 thick in the column, 100 * 100 * 1.0 thick in the inner lining, 50 * 80 * 1.3 thick in the crossbeam, 40 * 40 * 0.5 thick in the inner lining. Note: Three crossbeams - Middle crossbeam: 40 * 40 * 110, 30 * 30 * 0.5 thick in the inner lining. Color: light blue+white/dark blue/grass green/fruit green+white. Other specifications can be customized

圍擋特點：

Fencing features:

外形美觀大氣，不易老化褪色，更不會老化變脆

Beautiful and atmospheric appearance, resistant to aging and fading, and less prone to aging and becoming brittle

PVC圍擋的強度高，可抗6級風壓，外力不易破壞

The PVC enclosure has high strength, can withstand level 6 wind pressure, and is not easily damaged by external forces

產品裝拆便捷，一般情況下，3人一組每天可組裝數米以上

The product is easy to assemble and disassemble. Generally, a group of three people can assemble several meters or more per day

PVC圍擋的低安裝快速，可多次重復利用，有效節約成本

The PVC enclosure has a low price, fast installation, and can be reused multiple times, effectively saving costs

可與保溫材料相結合，保溫隔音效果良好，安裝方便，施工速度快，保護環境不受污染

It can be combined with insulation materials, with good insulation and sound insulation effects, convenient installation, fast construction speed, and protection of the environment from pollution

PVC圍擋不僅可以突出立柱框的形式分段組裝，又可以隱藏立柱的形式，不限長度的組裝。

The PVC enclosure can not only be assembled in segments by protruding the column frame, but also by concealing the column form for unlimited length assembly.

三 裝配式施工圍擋

Three assembly construction enclosure

裝配式圍擋現貨規格：高2.03m2.5m 柱中3.18m6.18m 白板：47.5cm*0.5 厚灰板:36cm*0.5厚 橫梁:50mm*50mm*0.7厚 立柱：250mm*150mm*0.8厚 底盤：250mm*280mm*5.0厚 其他規格均可定做

Prefabricated bumper stock specification: 2.03m2.5m high, 3.18m6.18m middle, white board: 47.5cm * 0.5 thick, gray board: 36cm * 0.5 thick, crossbeam: 50mm * 50mm * 0.7 thick, column: 250mm * 150mm * 0.8 thick, chassis: 250mm * 280mm * 5.0 thick, all other specifications can be customized

裝配式圍擋特點：

Features of prefabricated enclosure:

循環使用率高，降低采購企業成本

High recycling rate, reducing procurement enterprise costs

鋼結構立柱及面板可根據客戶需求及周?chē)h(huán)境采用靜電噴涂定制不同顏色，由于面板采用純平設計，也可以根據需要粘貼宣傳標語及圖畫。

Steel structure columns and panels can be customized in different colors using electrostatic spraying according to customer needs and the surrounding environment. Due to the flat design of the panels, promotional slogans and pictures can also be pasted as needed.

結構穩定，抗風性強

Stable structure and strong wind resistance

裝配式圍擋采用框架式結構，立柱采用國標型鋼或矩形管，擋板采用0.9MM鍍鋅板軋折成型。圍擋核心受力關鍵點由立柱斜拉撐橫撐加強筋共同組成，三重受力防護充分提高了圍擋的抗傾覆穩定性，抗剪強度和抗彎強度。通過受力模型計算，抗風等級≤10級。

The prefabricated enclosure adopts a frame structure, the columns are made of national standard steel or rectangular pipes, and the baffle is formed by rolling and folding 0.9MM galvanized sheet. The key stress points of the enclosure core are composed of the diagonal bracing and transverse bracing stiffeners of the column. The triple stress protection fully improves the anti overturning stability, shear strength and Flexural strength of the enclosure. According to the force model calculation, the wind resistance level is ≤ 10 levels.

快速安裝，標準化拼裝

Quick installation, standardized assembly

立柱橫梁擋板斜拉撐橫撐加強筋等部件按照設計與生產標準，尺寸與工藝實現標準化生產和標準化拼接安裝，施工現場可全部螺栓安裝，從而達到率生產快速運輸和拼接式安裝，大大降低了產品的采購成本。

According to the design and production standards, the size and process of the column, crossbeam, baffle, diagonal brace, transverse brace, stiffener and other components realize standardized production and splicing installation. All bolts can be installed at the construction site, so as to achieve efficient production, rapid transportation and splicing installation, which greatly reduces the purchase cost of products.

美觀整潔度高，提高施工現場整體環境及企業形象

High aesthetics and cleanliness, improving the overall environment and corporate image of the construction site

鋼結構裝配式圍擋板的鋼構件可%回收重復利用，擋板設計使用壽命可達5年以上，該產品日常維護率低，循環使用率高，大大降低了客戶的維護及使用成本。

The steel components of the assembled steel structure baffle can be recycled and reused, and the designed service life of the baffle can reach more than 5 years. This product has low daily maintenance rate and high recycling rate, greatly reducing customer maintenance and usage costs.
